Description

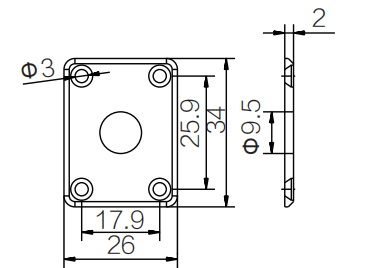

F-1013 output jack plate, 26 × 34 mm rectangular plate with φ9.5 mm jack bore, 2 mm thickness, and four countersunk φ3 mm mounting holes.
Output jack plate specs
- Overall width 26 mm (1.024 in)
- Overall length 34 mm (1.339 in)
- Plate thickness 2 mm (0.079 in)
- Hole diameter φ9.5 mm
- Mount spacing 17.9 mm (0.705 in)
- Reference Four countersunk φ3 mm corner holes on 17.9 mm × 25.9 mm centers.
Hardware
- Material Plastic / metal (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Rectangular plate with rounded corners and countersunk mount holes
- Four φ3 mm corner mounting holes on 17.9 mm × 25.9 mm layout
About measurements
- Mount hole spacing
-
17.9 mm (0.705 in)
Center-to-center distance between mounting holes on the bridge plate.
