Jack Plates
Request a quote → F-1015
F-1015
F-1015
Loading 3D model…
Loading 3D model…
Description

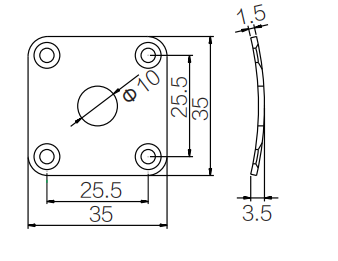

F-1015 output jack plate, 35 × 35 mm curved square plate with φ10 mm jack bore, 1.5 mm material thickness, and four corner mounting holes on 25.5 mm centers.
Output jack plate specs
- Overall width 35 mm (1.378 in)
- Overall length 35 mm (1.378 in)
- Plate thickness 1.5 mm (0.059 in)
- Hole diameter φ10 mm
- Mount spacing 25.5 mm (1.004 in)
- Reference Four corner mounting holes on 25.5 mm × 25.5 mm centers; 3.5 mm total curved depth.
Hardware
- Material Plastic / metal (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Curved square plate with rounded corners
- Four corner mounting holes on 25.5 mm square layout
About measurements
- Mount hole spacing
-
25.5 mm (1.004 in)
Center-to-center distance between mounting holes on the bridge plate.
