Description

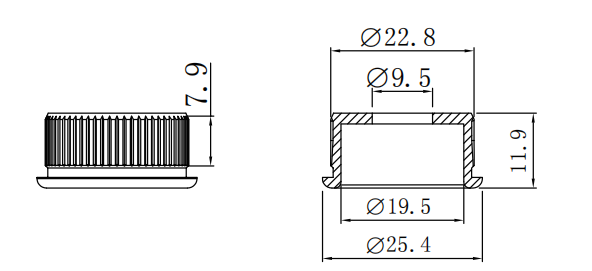

F-1016 output jack plate, φ25.4 mm flanged knurled cup with φ9.5 mm jack bore, 11.9 mm overall height, and 7.9 mm knurled body section.
Output jack plate specs
- Overall width 25.4 mm (1 in)
- Overall length 11.9 mm (0.469 in)
- Plate thickness 7.9 mm (0.311 in)
- Hole diameter φ9.5 mm
- Reference Press-fit knurled cup; no separate mounting holes (φ22.8 mm body OD, φ19.5 mm bore).
Hardware
- Material Plastic / metal (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Knurled cylindrical body with flanged base for press-fit retention
- φ22.8 mm body OD with φ19.5 mm internal cavity
About measurements
- Mount hole spacing
-
Press-fit knurled cup; no separate mounting holes (φ22.8 mm body OD, φ19.5 mm bore).
Center-to-center distance between mounting holes on the bridge plate.
