FR-OS

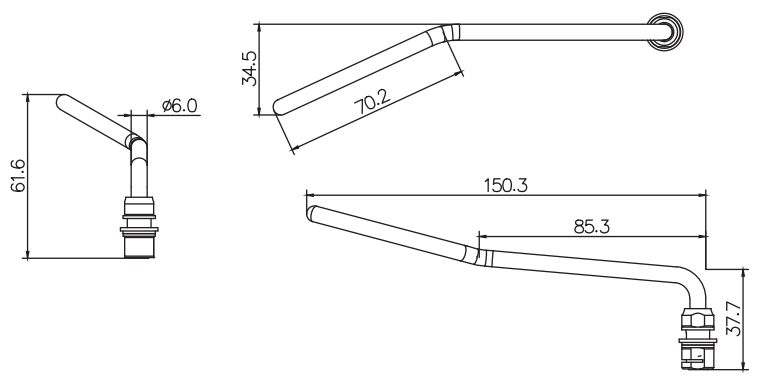

Technical drawingFR-OS
Description
FR-OS tremolo arm, φ6.0 mm rod with push-in base, 150.3 mm length, 61.6 mm height, 34.5 mm lateral offset.
Tremolo arm specs
- Mount type Push-in collet base
- Arm diameter 6 mm (0.236 in)
- Overall length 150.3 mm (5.917 in)
- Overall height 61.6 mm (2.425 in)
- Lateral offset 34.5 mm (1.358 in)
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- Tiered cylindrical mounting base
- 70.2 mm handle segment after second bend
