FR-PA

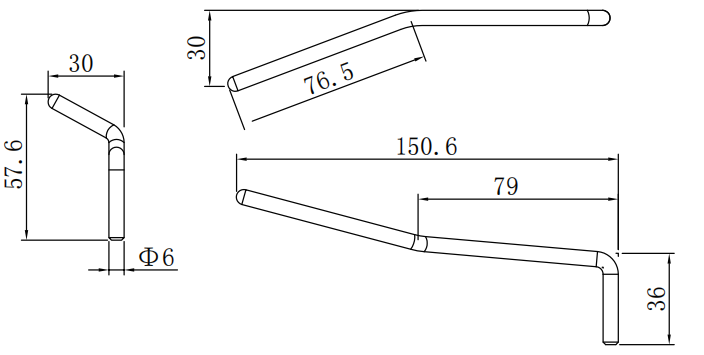

Technical drawingFR-PA
Description
FR-PA tremolo arm, φ6.0 mm rod, 150.6 mm overall length, 57.6 mm height, 30 mm lateral offset.
Tremolo arm specs
- Mount type Push-in / hook anchor
- Arm diameter 6 mm (0.236 in)
- Overall length 150.6 mm (5.929 in)
- Overall height 57.6 mm (2.268 in)
- Lateral offset 30 mm (1.181 in)
Hardware
- Adjustment Height and intonation screws
- Finish More colors — see matching swatches
Features
- 79 mm horizontal shaft plus 76.5 mm angled segment
- 36 mm downward hook end
