H-1008

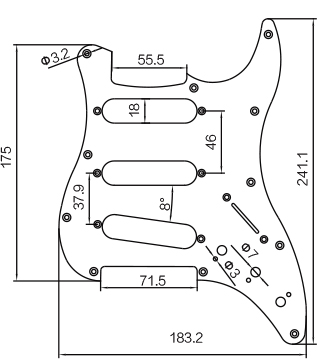

Technical drawingH-1008
Description
H-1008 is an 11-hole Stratocaster-style pickguard, 183.2 × 241.1 mm, with SSS single-coil cutouts (height 18 mm) and perimeter mount holes φ3.2 mm.
Pickguard specs
- Overall width 183.2 mm (7.213 in)
- Overall length 241.1 mm (9.492 in)
- Mount hole diameter φ3.2 mm
- Mount spacing 46 mm (1.811 in)
- Layout reference SSS layout; 11 perimeter mount holes φ3.2 mm; SC cutout height 18 mm; neck-to-middle 46 mm, middle-to-bridge 37.9 mm; bridge pickup 8°; neck pocket 55.5 mm; bridge cutout 71.5 mm; pot holes φ7 mm, aux φ3 mm
Hardware
- Material PVC / ABS plastic (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Compact outline with slanted bridge pickup at 8°
- Left edge height 175 mm
About measurements
- Mount hole spacing
-
46 mm (1.811 in)
Center-to-center distance between mounting holes on the bridge plate.
