H-3001

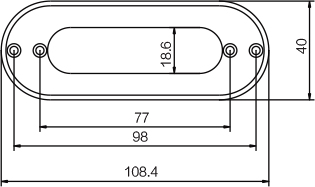

Technical drawingH-3001
Description
Stadium-shaped mounting plate 108.4 × 40 mm with 18.6 mm cutout height and 4 mounting holes (77 mm and 98 mm C-C spacing).
Pickguard specs
- Overall width 108.4 mm (4.268 in)
- Overall length 40 mm (1.575 in)
- Mount spacing 77 mm (3.031 in)
- Layout reference Inner mounting-hole pair 77 mm C-C; outer pair 98 mm C-C.
Hardware
- Material PVC / ABS plastic (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Stadium outer profile
- inner cutout height 18.6 mm
About measurements
- Mount hole spacing
-
77 mm (3.031 in)
Center-to-center distance between mounting holes on the bridge plate.
