H-3002

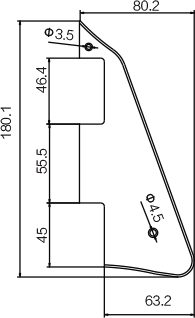

Technical drawingH-3002
Description
Pickguard 80.2 × 180.1 mm (63.2 mm lower width) with dual humbucker cutouts and Φ3.5 / Φ4.5 mm mounting holes.
Pickguard specs
- Overall width 80.2 mm (3.157 in)
- Overall length 180.1 mm (7.091 in)
- Mount hole diameter φ3.5 mm
- Layout reference Upper mount hole Φ3.5 mm; lower mount hole Φ4.5 mm.
Hardware
- Material PVC / ABS plastic (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Humbucker cutouts 46.4 mm and 45.0 mm high, 55.5 mm apart
- lower width 63.2 mm.
About measurements
- Mount hole spacing
-
Upper mount hole Φ3.5 mm; lower mount hole Φ4.5 mm.
Center-to-center distance between mounting holes on the bridge plate.
