PICKGUARDS
Request a quote → H-3003

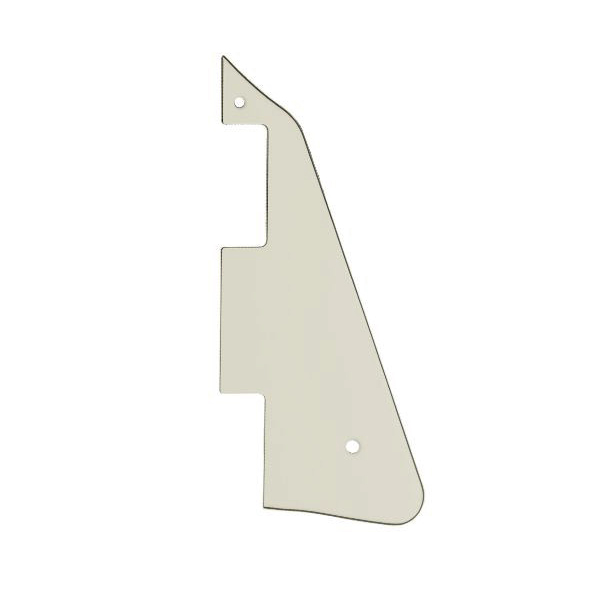

H-3003

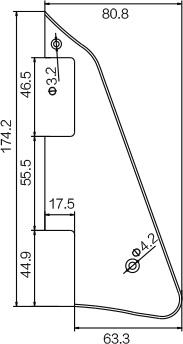

Technical drawingH-3003
Description
Pickguard 80.8 × 174.2 mm (63.3 mm lower width) with dual humbucker cutouts and Φ3.2 / Φ4.2 mm mounting holes.
Pickguard specs
- Overall width 80.8 mm (3.181 in)
- Overall length 174.2 mm (6.858 in)
- Mount hole diameter φ3.2 mm
- Layout reference Upper mount hole Φ3.2 mm; lower mount hole Φ4.2 mm.
Hardware
- Material PVC / ABS plastic (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Humbucker cutouts 46.5 mm and 44.9 mm high, 55.5 mm apart
- bottom cutout depth 17.5 mm
About measurements
- Mount hole spacing
-
Upper mount hole Φ3.2 mm; lower mount hole Φ4.2 mm.
Center-to-center distance between mounting holes on the bridge plate.
