Truss rod cover
Request a quote → HA-2035
HA-2035

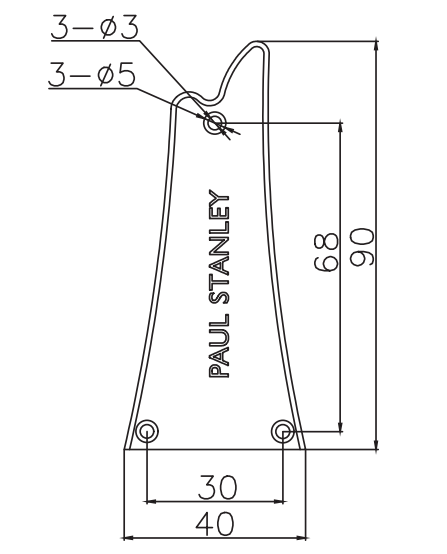

Technical drawingHA-2035
Description
HA-2035 truss rod cover, 90 × 40 mm signature plate, φ3 mm / φ5 mm countersunk 3-hole mount.
Headstock plate specs
- Overall width 40 mm (1.575 in)
- Bottom width 40 mm (1.575 in)
- Overall length 90 mm (3.543 in)
- Hole diameter φ3 mm
- Mount spacing 30 mm (1.181 in)
- Reference Bottom hole pair on 30 mm centers; top hole center 68 mm above bottom hole axis; countersink φ5 mm.
Hardware
- Material Plastic plate (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Decorative profile 90 mm tall × 40 mm base with PAUL STANLEY engraving
- 3 × φ3 mm holes with φ5 mm countersink on 30 mm / 68 mm layout
About measurements
- Mount hole spacing
-
30 mm (1.181 in)
Center-to-center distance between mounting holes on the bridge plate.
