Truss rod cover
Request a quote → HA-2038
HA-2038

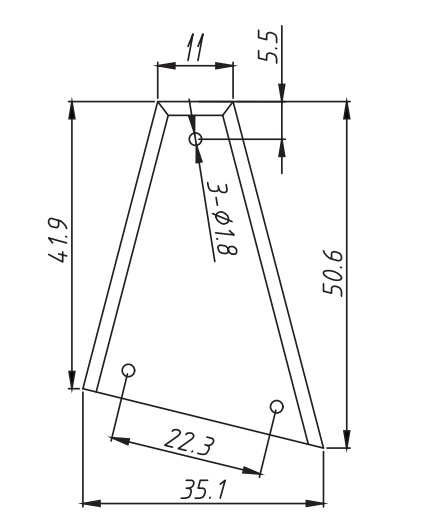

Technical drawingHA-2038
Description
HA-2038 truss rod cover, 50.6 mm tall asymmetrical trapezoid, 35.1 mm base / 11 mm tip, φ1.8 mm 3-hole mount.
Headstock plate specs
- Overall width 35.1 mm (1.382 in)
- Bottom width 35.1 mm (1.382 in)
- Overall length 50.6 mm (1.992 in)
- Hole diameter φ1.8 mm
- Mount spacing 22.3 mm (0.878 in)
- Reference Bottom hole pair on 22.3 mm centers along slanted base; top hole center 5.5 mm from top edge; left side 41.9 mm / right side 50.6 mm.
Hardware
- Material Plastic plate (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Asymmetrical trapezoid 35.1 mm base tapering to 11 mm tip, beveled edges
- φ1.8 mm holes on 22.3 mm base pair / 5.5 mm top-hole layout
About measurements
- Mount hole spacing
-
22.3 mm (0.878 in)
Center-to-center distance between mounting holes on the bridge plate.
