Truss rod cover
Request a quote → HA-2037
HA-2037

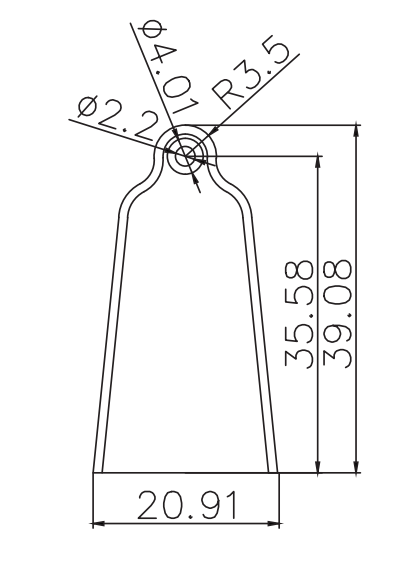

Technical drawingHA-2037
Description
HA-2037 truss rod cover, 39.08 × 20.91 mm tapered plate, φ2.2 mm / φ4.01 mm single-hole mount.
Headstock plate specs
- Overall width 20.91 mm (0.823 in)
- Bottom width 20.91 mm (0.823 in)
- Overall length 39.08 mm (1.539 in)
- Hole diameter φ2.2 mm
- Reference Single hole center 35.58 mm from base; outer ring φ4.01 mm; top outer radius R3.5 mm.
Hardware
- Material Plastic plate (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Tapered profile 39.08 mm tall × 20.91 mm base with rounded top tab
- φ2.2 mm single mounting hole at 35.58 mm height with φ4.01 mm outer ring
About measurements
- Mount hole spacing
-
Single hole center 35.58 mm from base; outer ring φ4.01 mm; top outer radius R3.5 mm.
Center-to-center distance between mounting holes on the bridge plate.
