Truss rod cover
Request a quote → HA-2036
HA-2036

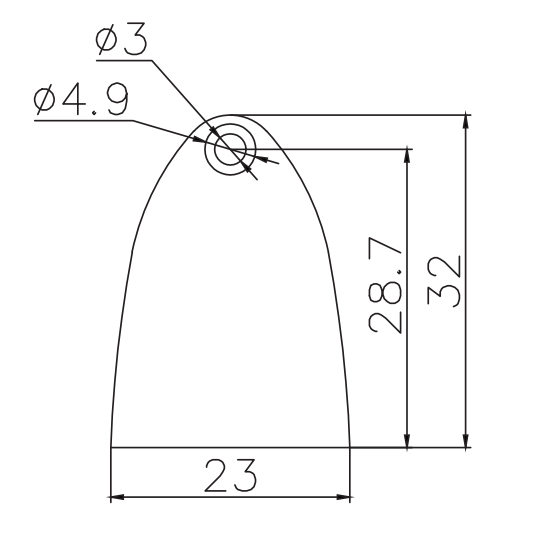

Technical drawingHA-2036
Description
HA-2036 truss rod cover, 32 × 23 mm bell plate, φ3 mm / φ4.9 mm single-hole mount.
Headstock plate specs
- Overall width 23 mm (0.906 in)
- Bottom width 23 mm (0.906 in)
- Overall length 32 mm (1.26 in)
- Hole diameter φ3 mm
- Reference Single hole center 28.7 mm from bottom edge; countersink φ4.9 mm.
Hardware
- Material Plastic plate (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Bell profile 32 mm tall × 23 mm base
- φ3 mm single mounting hole at 28.7 mm height with φ4.9 mm countersink
About measurements
- Mount hole spacing
-
Single hole center 28.7 mm from bottom edge; countersink φ4.9 mm.
Center-to-center distance between mounting holes on the bridge plate.
