Pickup Rings
Request a quote → J-2001
J-2001
J-2001
Loading 3D model…
Loading 3D model…
Description

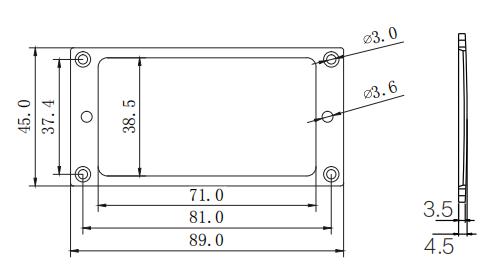

J-2001 is a zinc humbucker pickup ring with 89.0 × 45 mm plate, slanted 3.5–4.5 mm height, φ3.0 mm corner mount holes on 81.0 mm spacing.
Pickup ring specs
- Overall width 89 mm (3.504 in)
- Overall height 45 mm (1.772 in)
- Ring thickness 4.5 mm (0.177 in)
- Hole diameter φ3 mm
- Mount spacing 81 mm (3.189 in)
- Reference Corner mounting holes on 81.0 mm × 37.4 mm centers; side adjustment holes φ3.6 mm; zinc alloy; slanted profile 3.5–4.5 mm.
Hardware
- Material Plastic / zinc alloy (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Zinc alloy humbucker pickup ring
- 71.0 mm × 38.5 mm inner cutout
- Flat bottom with slanted top profile 3.5–4.5 mm
About measurements
- Mount hole spacing
-
81 mm (3.189 in)
Center-to-center distance between mounting holes on the bridge plate.
