Pickup Rings
Request a quote → J-2002
J-2002
J-2002
Loading 3D model…
Loading 3D model…
Description

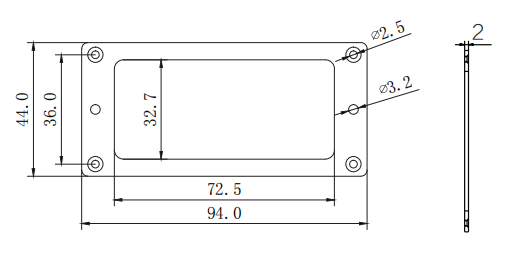

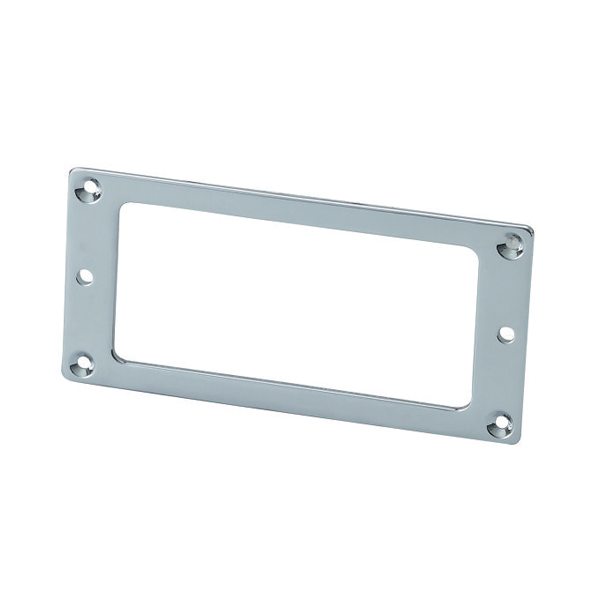

J-2002 is an iron humbucker pickup ring with 94.0 × 44.0 mm plate, 2 mm flat thickness, φ2.5 mm corner mount holes.
Pickup ring specs
- Overall width 94 mm (3.701 in)
- Overall height 44 mm (1.732 in)
- Ring thickness 2 mm (0.079 in)
- Hole diameter φ2.5 mm
- Reference Corner mounting holes on 36.0 mm vertical centers; side adjustment holes φ3.2 mm; horizontal hole spacing not dimensioned on drawing.
Hardware
- Material Plastic / zinc alloy (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Iron humbucker pickup ring
- 72.5 mm × 32.7 mm inner cutout
- Four corner mount holes and two side adjustment holes
About measurements
- Mount hole spacing
-
Corner mounting holes on 36.0 mm vertical centers; side adjustment holes φ3.2 mm; horizontal hole spacing not dimensioned on drawing.
Center-to-center distance between mounting holes on the bridge plate.
