J-2004
J-2004
Loading 3D model…
Loading 3D model…
Description

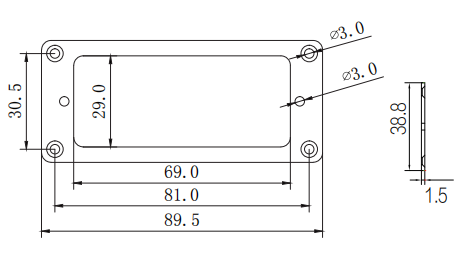

J-2004 is an iron humbucker pickup ring with 89.5 × 38.8 mm plate, 1.5 mm flat thickness, φ3.0 mm corner mount holes on 81.0 mm spacing.
Pickup ring specs
- Overall width 89.5 mm (3.524 in)
- Overall height 38.8 mm (1.528 in)
- Ring thickness 1.5 mm (0.059 in)
- Hole diameter φ3 mm
- Mount spacing 81 mm (3.189 in)
- Reference Corner mounting holes on 81.0 mm × 30.5 mm centers; side adjustment holes φ3.0 mm.
Hardware
- Material Plastic / zinc alloy (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Iron humbucker pickup ring
- 69.0 mm × 29.0 mm inner cutout
- Four corner mount holes and two side adjustment holes
About measurements
- Mount hole spacing
-
81 mm (3.189 in)
Center-to-center distance between mounting holes on the bridge plate.
