J-2003
J-2003
Loading 3D model…
Loading 3D model…
Description

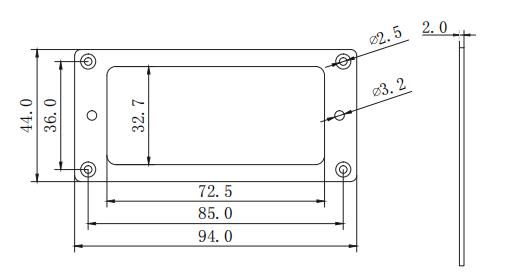

J-2003 is an iron humbucker pickup ring with 94.0 × 44.0 mm plate, 2 mm flat thickness, φ2.5 mm corner mount holes on 85.0 mm spacing.
Pickup ring specs
- Overall width 94 mm (3.701 in)
- Overall height 44 mm (1.732 in)
- Ring thickness 2 mm (0.079 in)
- Hole diameter φ2.5 mm
- Mount spacing 85 mm (3.346 in)
- Reference Corner mounting holes on 85.0 mm × 36.0 mm centers; side adjustment holes φ3.2 mm.
Hardware
- Material Plastic / zinc alloy (standard)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Iron humbucker pickup ring
- 72.5 mm × 32.7 mm inner cutout
- Four corner mount holes and two side adjustment holes
About measurements
- Mount hole spacing
-
85 mm (3.346 in)
Center-to-center distance between mounting holes on the bridge plate.
