Locking Nuts
Request a quote → KB-2006
KB-2006
KB-2006
Loading 3D model…
Loading 3D model…
Description

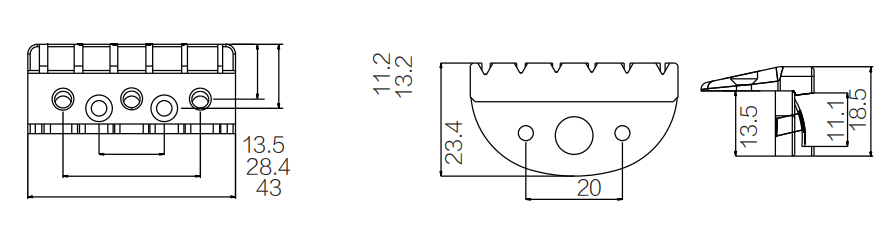

Bridge assembly 43 × 23.4 mm, height 18.5 mm with 13.5 / 11.1 mm internal sections.
Hardware part specs
- Overall width 43 mm (1.693 in)
- Overall length 23.4 mm (0.921 in)
- Body height 18.5 mm (0.728 in)
- Overall height 18.5 mm (0.728 in)
- Mount spacing 20 mm (0.787 in)
- Reference Front face holes 13.5 / 28.4 mm
Hardware
- Material Zinc alloy / steel (per part)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Stepped internal bridge body
About measurements
- Mount hole spacing
-
20 mm (0.787 in)
Center-to-center distance between mounting holes on the bridge plate.
