Description
Large curved bridge 48 × 49 mm, front width 37.8 mm, seven Φ5.5 holes.
Hardware part specs
- Overall width 48 mm (1.89 in)
- Overall length 49 mm (1.929 in)
- Hole diameter φ5.5 mm
- Mount spacing 32.9 mm (1.295 in)

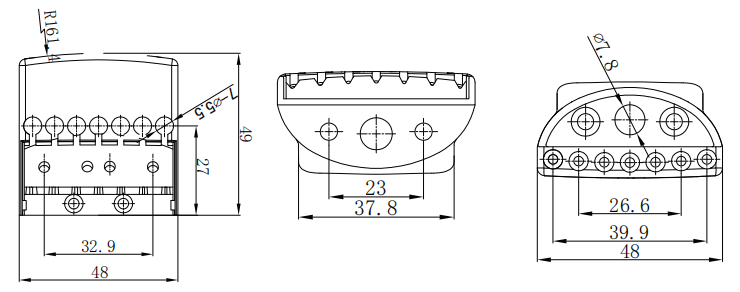

- Reference 7×Φ5.5; rear Φ7.8; spacings 23 / 26.6 / 39.9 mm; string holes 27 mm from bottom; radius R161.4
Hardware
- Material Zinc alloy / steel (per part)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Wide radiused bridge (R161.4)
About measurements
- Mount hole spacing
-
32.9 mm (1.295 in)
Center-to-center distance between mounting holes on the bridge plate.
