KB-2009

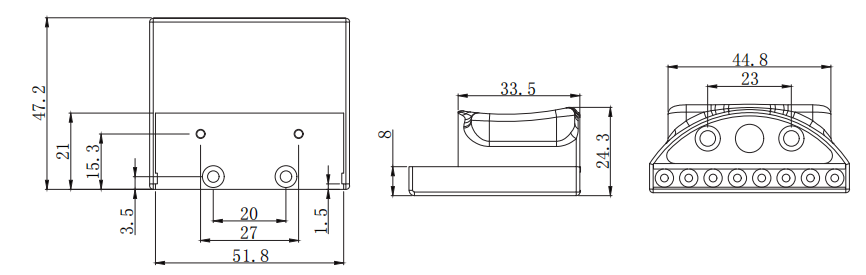

Technical drawingKB-2009
Description
Bridge assembly 51.8 × 47.2 mm, height 24.3 mm, base thickness 8 mm, front width 44.8 mm.
Hardware part specs
- Overall width 51.8 mm (2.039 in)
- Overall length 47.2 mm (1.858 in)
- Body height 24.3 mm (0.957 in)
- Overall height 24.3 mm (0.957 in)
- Mount spacing 20 mm (0.787 in)
- Reference Mount holes 20 / 27 mm; front face spacing 23 mm; upper section depth 33.5 mm
Hardware
- Material Zinc alloy / steel (per part)
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Deep bridge housing
About measurements
- Mount hole spacing
-
20 mm (0.787 in)
Center-to-center distance between mounting holes on the bridge plate.
