Description

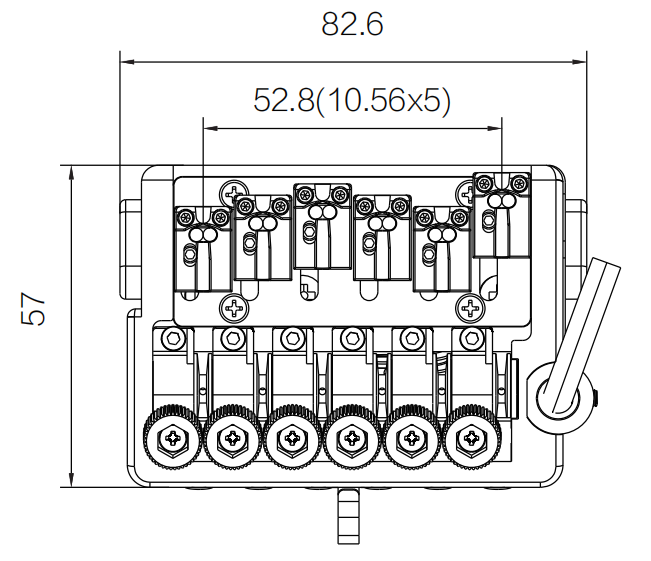

W-1016 is a 6-string headless guitar bridge with 10.56 mm spacing, 82.6 × 57.0 mm plate, and tremolo arm.

String count 6-string
String spacing 10.56 mm (0.416 in)
String spread 52.8 mm (2.079 in)
Overall width 82.6 mm (3.252 in)
Overall length 57 mm (2.244 in)
Layout reference Four mounting screws shown; center-to-center spacing not dimensioned on drawing.

String spacing

10.56 mm (0.416 in)

Center-to-center distance between adjacent strings at the bridge.

Mount hole spacing

Four mounting screws shown; center-to-center spacing not dimensioned on drawing.

Center-to-center distance between mounting holes on the bridge plate.

Sustain block

Tremolo block depth sets spring tension range; verify against body cavity depth.
