Description

W-1017 is a 7-string headless guitar bridge with 10.4 mm spacing, 93.2 × 57.0 mm plate, and tremolo arm.

String count 7-string
String spacing 10.4 mm (0.409 in)
String spread 63.4 mm (2.496 in)
Overall width 93.2 mm (3.669 in)
Overall length 57 mm (2.244 in)

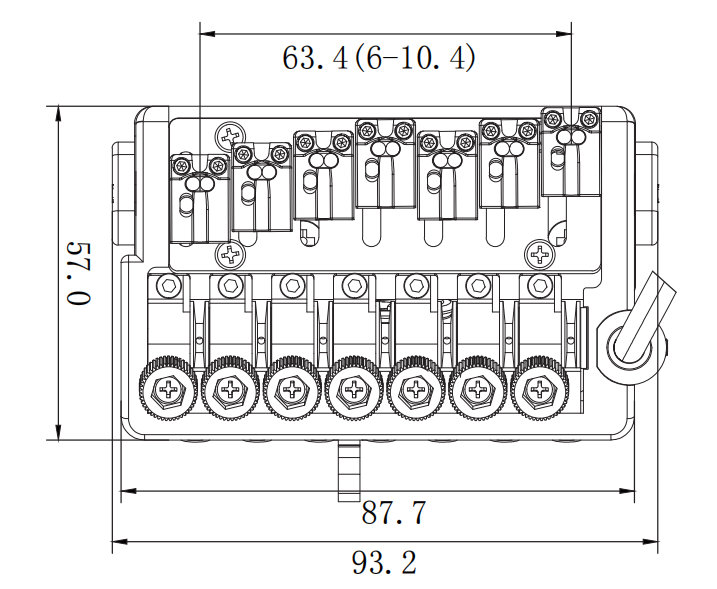

Layout reference Four mounting screws shown; main body width 87.7 mm; mount spacing not dimensioned on drawing.

String spacing

10.4 mm (0.409 in)

Center-to-center distance between adjacent strings at the bridge.

Mount hole spacing

Four mounting screws shown; main body width 87.7 mm; mount spacing not dimensioned on drawing.

Center-to-center distance between mounting holes on the bridge plate.

Sustain block

Tremolo block depth sets spring tension range; verify against body cavity depth.
