Description

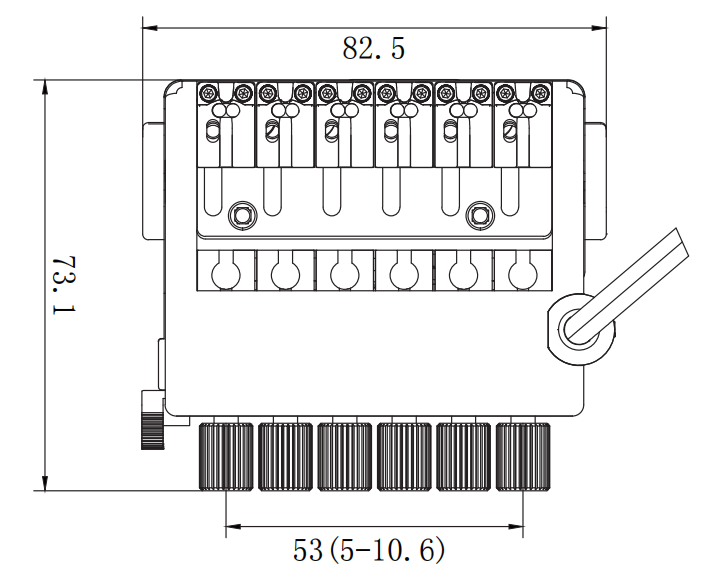

W-1018 is a 6-string headless guitar bridge with 10.6 mm spacing, 82.5 × 73.1 mm plate, 53 mm string spread, and integrated tremolo arm socket.
Headless bridge specs
- String count 6-string
- String spacing 10.6 mm (0.417 in)
- String spread 53 mm (2.087 in)
- Overall width 82.5 mm (3.248 in)
- Overall length 73.1 mm (2.878 in)
- Layout reference Mount hole spacing not dimensioned on drawing.
Hardware
- Material Zinc alloy
- Adjustment N/A
- Finish More colors — see matching swatches
Features
- Integrated knurled tuning barrels
- Individual adjustable saddles with height screws
- Right-side tremolo arm socket
About measurements
- String spacing
-
10.6 mm (0.417 in)
Center-to-center distance between adjacent strings at the bridge.
- Mount hole spacing
-
Mount hole spacing not dimensioned on drawing.
Center-to-center distance between mounting holes on the bridge plate.
- Sustain block
-
Tremolo block depth sets spring tension range; verify against body cavity depth.
