Description

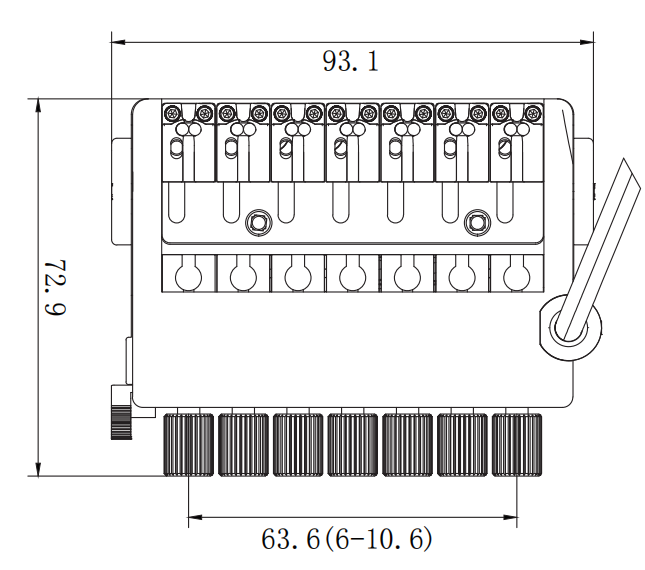

W-1019 is a 7-string headless guitar bridge with 10.6 mm spacing, 93.1 × 72.9 mm plate, 63.6 mm string spread, and integrated tremolo arm socket.

String count 7-string
String spacing 10.6 mm (0.417 in)
String spread 63.6 mm (2.504 in)
Overall width 93.1 mm (3.665 in)
Overall length 72.9 mm (2.87 in)
Layout reference Two base mounting screws shown; hole spacing not dimensioned on drawing.

String spacing

10.6 mm (0.417 in)

Center-to-center distance between adjacent strings at the bridge.

Mount hole spacing

Two base mounting screws shown; hole spacing not dimensioned on drawing.

Center-to-center distance between mounting holes on the bridge plate.

Sustain block

Tremolo block depth sets spring tension range; verify against body cavity depth.
